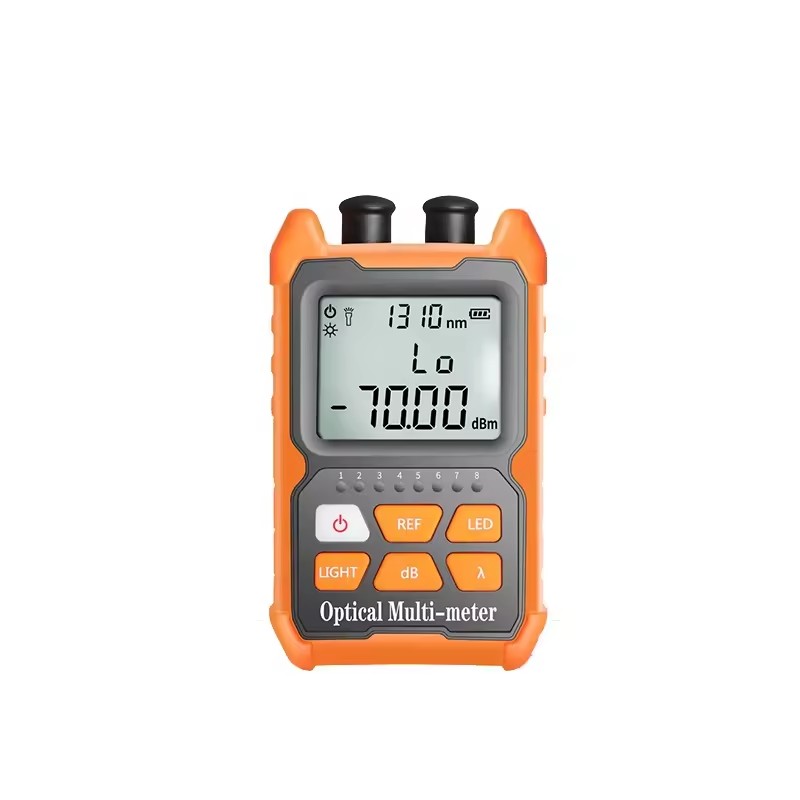

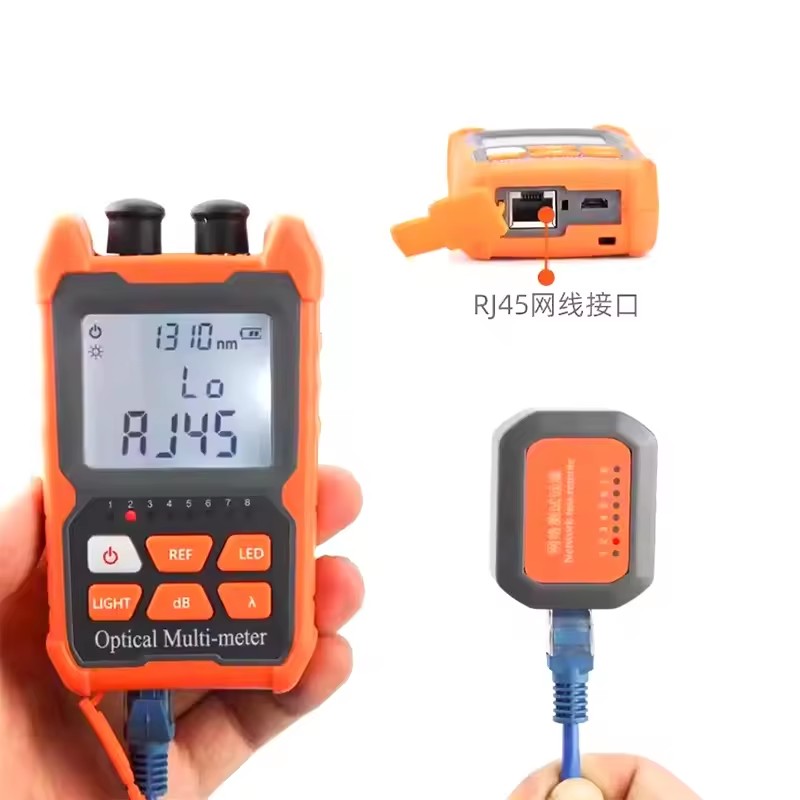

FN20-OPM Mini Optical Power Meter 4-in-1 Network Cable Tester with Visual Fault Locator RJ45 for Fiber Optic Equipment
|
Wavelength range
|
800~1700nm
|
|
connector
|

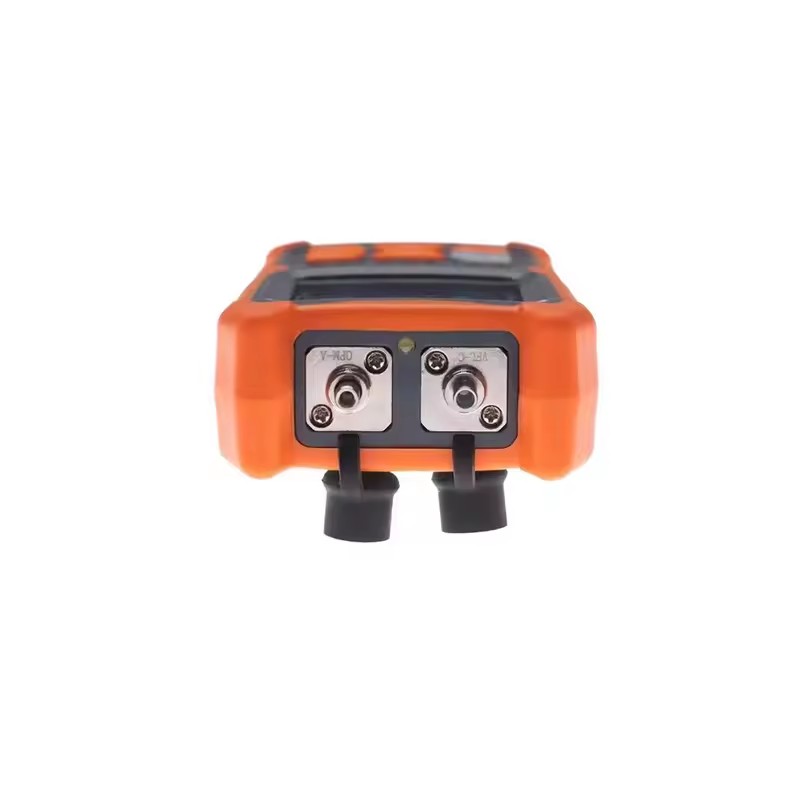

Universal connector FC/SC/ST
|
|
Connector type
|
TnGaAs
|
|
Measuring range
|
Type A: -70~+6 Type B: -50~+26
|
|
Uncertainty
|
±5%
|
|
Standard wavelengths(nm)
|
850、980、1300、1310、1490、1550、1625、1650
|
|
Display resolution
|
Linear display: 0.1% Logarithmic display: 0.01dBm
|
|
650nm Red Light Source (Option)
|
1mw/10mw/20mw/30mw/50mw
|
|
Operating temperature
|
-10~+60℃
|
|
Storage temperature
|
-30~+70℃
|
|
Automatic shutdown time
|
10min
|
|
Continuous working hours
|
=72h
|
|
Electricity
|
2 x No. 7 battery/rechargeable lithium battery (option)
|
|
Gauge net weight
|
140/150g
|
25 $ 30 $
